PostPosted: 23 Jan 2010 12:11
Offline
User avatar

Joined: 06 May 2009 17:54
Posts: 788
Location: Edinburgh

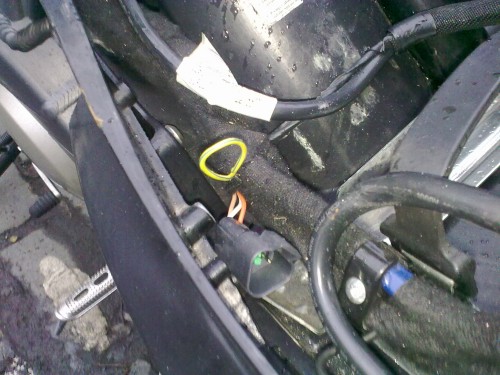

2007 XB STT...


Attachments:
23012010013.jpg [ 647.79 KiB | Viewed 739 times ]
Top
PostPosted: 23 Jan 2010 12:14
Offline
Site Admin
User avatar

Joined: 15 Apr 2009 17:17
Posts: 8245
Location: Manchester
Exhaust servo.

_________________
Mithered ta death.
92 MB
96 S2T
98 S1W
00 M2
01 X1
03 P3
10 CR


Top
PostPosted: 23 Jan 2010 12:53
Offline
User avatar

Joined: 06 May 2009 17:54
Posts: 788
Location: Edinburgh
Aha!

Merci. Was sure it was something unimportant since the bike is running fine.


Top
PostPosted: 23 Jan 2010 21:28
Offline
User avatar

Joined: 07 May 2009 21:25
Posts: 882
Current ride: CZ 350!
Location: Notts
Shouldn't it be showing a fault code if nothing's connected to it?

_________________
aka DrBagiva, DrBusqvarna, Uncle Knobhead


Top
PostPosted: 23 Jan 2010 21:38
Offline
proff. patpending
User avatar

Joined: 06 May 2009 20:20
Posts: 14331
Current ride: Victoria Sponge
Location: Bristol - Gateway to all things good
Yes, unless the error checking has been turned off (or it is a race ECU)

_________________
08 Specialized Langster


Top
PostPosted: 24 Jan 2010 09:05
Offline
User avatar

Joined: 06 May 2009 17:54
Posts: 788
Location: Edinburgh
I turned it off in the ECU.

Pash - used your circuit to wire in my heated grips the other day - excellent stuff!
I wired on the grey plug to the end of it to make it liek the accessory socket - figured it'd be easier if I need to go back and change anything.

Cheers though!


Top
PostPosted: 05 Feb 2010 18:50
Offline

Joined: 07 Nov 2009 17:31
Posts: 2
Location: Springfield MO, USA!!
That's not for the exhaust servo. (which on a stock 12STT would be under the airbox.)

That controls the intake servo found on Japanese models.

That yellow/green wire loop is for convenient spark pickup when dyno tuning.


Top
PostPosted: 05 Feb 2010 18:59
Offline
Site Admin
User avatar

Joined: 15 Apr 2009 17:17
Posts: 8245
Location: Manchester
Wrong......that IS the exhaust servo connector :roll: ......if you follow the harness from the airbox lid, it plugs into that connector :idea:

Please dont bother arguing, I've removed 100's of those short harness's and disabled the codes in the ECM when fitting aftermarket zorts.

_________________
Mithered ta death.
92 MB
96 S2T
98 S1W
00 M2
01 X1
03 P3
10 CR


Top
PostPosted: 05 Feb 2010 19:18
Offline
proff. patpending
User avatar

Joined: 06 May 2009 20:20
Posts: 14331
Current ride: Victoria Sponge
Location: Bristol - Gateway to all things good
jos51700 wrote:
That yellow/green wire loop is for convenient spark pickup when dyno tuning.


Hi jos51700, welcome...

Yep you are right, Buell call the Yellow/Blue loop the "Dyno Loop"

_________________
08 Specialized Langster
