Anybody got a few pics of one mounted ? ....got one for Muffin but think there is a bar missing possibly that should fit under subframe..also suspect although it was together when I received it that the sidebars are the wrong way round.

_________________
2001 X1 2009 1125CR 2006 Uly X3 2010 Uly a fully Maz'd S1 and a 1991 RS1200 Westwind.

the one on my m2 has a tie bar...sounds like your missing a bit m8. Not rocket science to make one

_________________
xxxx

I think I can scan the instructions if I can find them. There should be a crossbar underneath which you can make out of a bit of threadbar and 4 nuts if it's missing.

_________________
I'm a Hornithologist, I get excited by exotic birds.........

kev u should hav 2 L brackes one cross bar an two screw brackets things will take pic for u

Thanks folks .......pics and instructions would be great if possible
I've had this rack stored amongst lots of other stuff and trying to remember if it had a crossmember when it arrived.
If i've got some pics I can soon make one up though.

_________________
2001 X1 2009 1125CR 2006 Uly X3 2010 Uly a fully Maz'd S1 and a 1991 RS1200 Westwind.

hope this helps

Thanks mate

_________________
2001 X1 2009 1125CR 2006 Uly X3 2010 Uly a fully Maz'd S1 and a 1991 RS1200 Westwind.

I tried to scan this as a pdf but wouldn't attach, hope you can read it from a photo

_________________
I'm a Hornithologist, I get excited by exotic birds.........

Cheers mate

_________________
2001 X1 2009 1125CR 2006 Uly X3 2010 Uly a fully Maz'd S1 and a 1991 RS1200 Westwind.

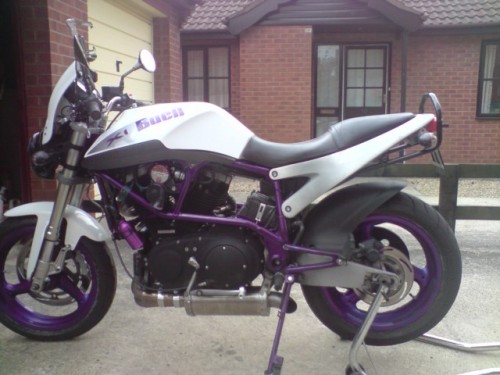

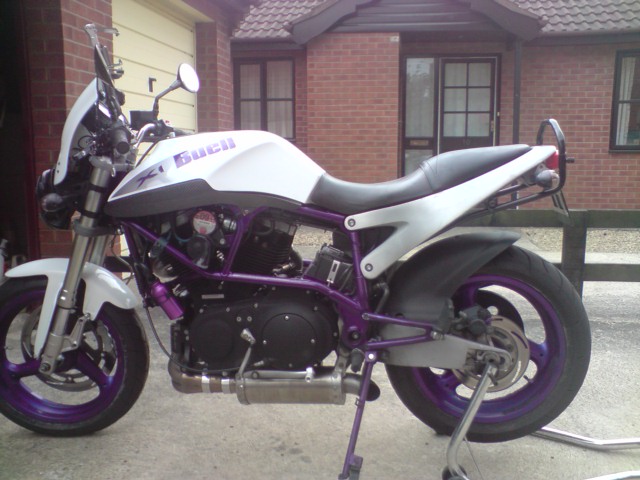

Rack fitted with just two small cutouts required in the home made undertray to allow the clamps to fit onto the inside of subframe.....looks like the previous owner never had the cross piece as there was two nuts and bolts that had been used to fasten L brackets to the clamps ...have fitted it the same for now and will make up a 237mm cross brace at work ...I think the main time that the brace does anything is if the L brackets are left on without any form of rack or handrail.
Thanks for the help again folks
