WILLYBUELL

Post subject: COUPLE O HOURS SPARE

PostPosted: 22 Sep 2012 21:01

Offline

Think Pink

Joined: 07 Jun 2010 00:37
Posts: 3777
Current ride: Awesome Ulysses & X1
Location: balderton, newark

needed a portable jig for helicoiling my rear cylinder , :yup:

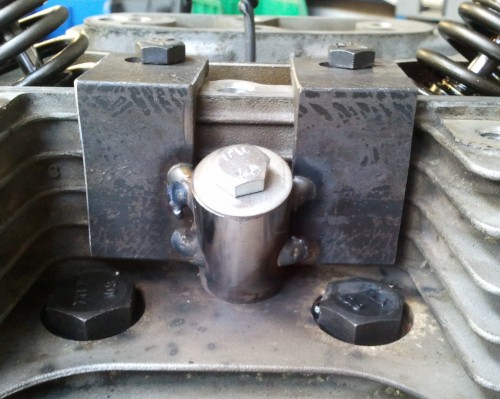

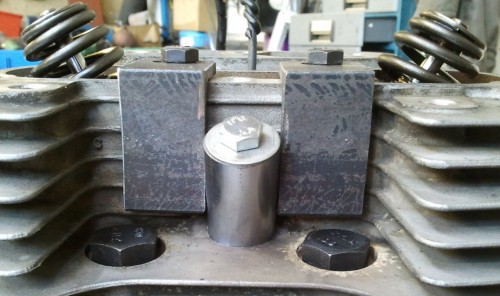

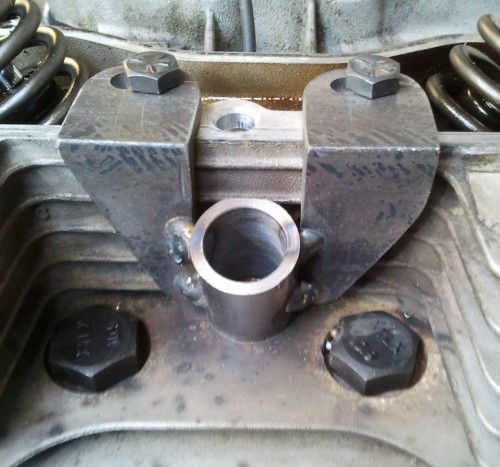

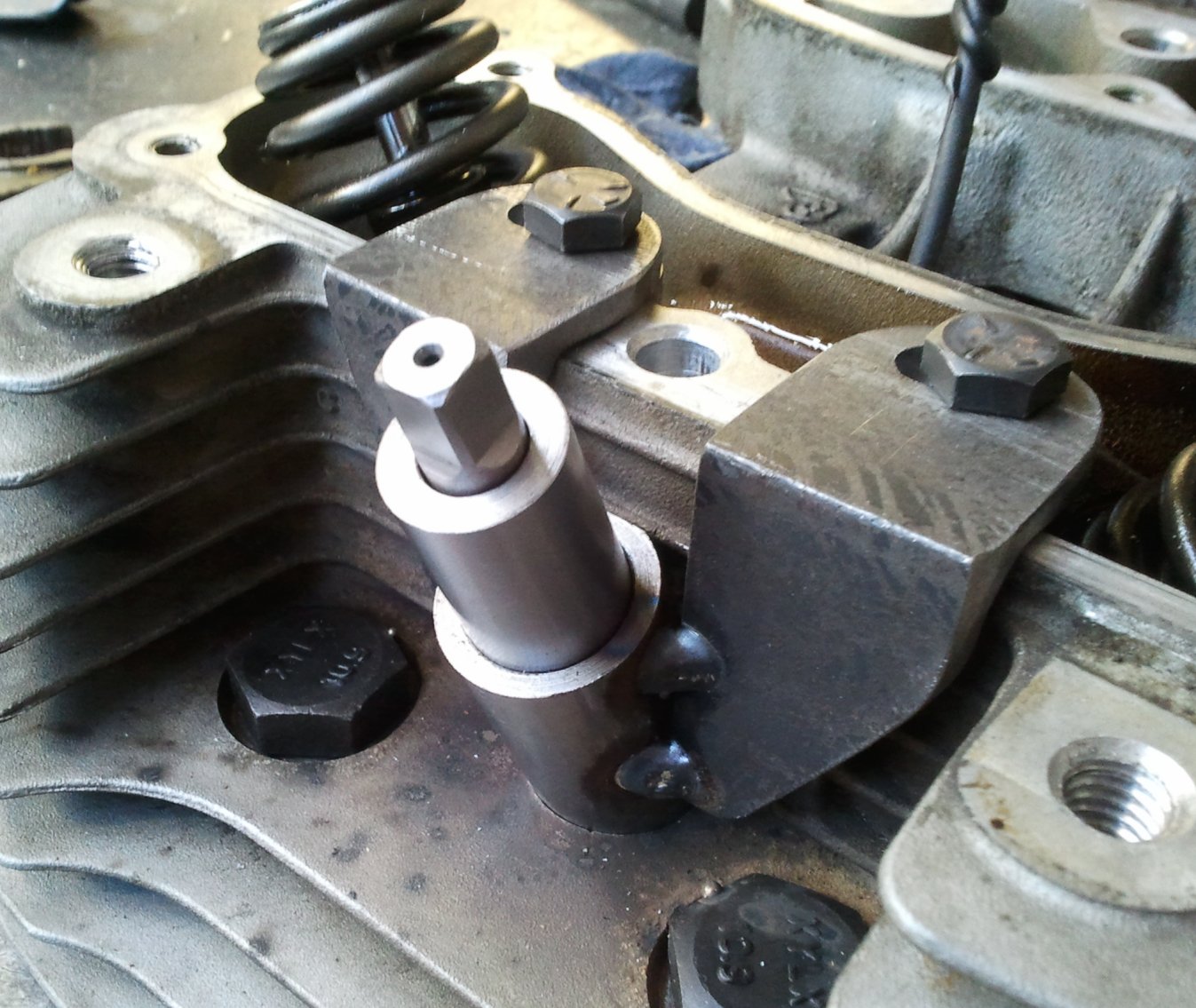

so came up with THIIS ,1 inch hyd rod reamed to take 3/4 inch hyd rod ,the smaller rod x two ,one is drilled tapping drill size to keep the drill on the center line of the plug hole the other keeps the tap on the center line of the plug also ,the reason the 1inch rod is used is because plugs are set into the heads in a 1 inch ID hole ,needed a bit of cleaning to seat the rod full depth in and square ,the slotted holes allow the jig to be used front n rear SOOOOOORTED

Attachments:

H J 1.jpg [ 186.73 KiB | Viewed 413 times ]

H J 2.jpg [ 216.31 KiB | Viewed 413 times ]

H J 3.jpg [ 253.37 KiB | Viewed 413 times ]

H J 4.jpg [ 212.84 KiB | Viewed 413 times ]

H J 5.jpg [ 248.24 KiB | Viewed 413 times ]

_________________
IF IT BLEEDS WE CAN KILL IT ,THIS STUFF WILL MAKE YOU A GODDAM SEXUAL TYRANASURUS ,YOUVE BEEN PUSHING TOO MANY PENCILS DILLON .GET TO THE CHOPPER

Top

Profile Send private message

Reply with quote

boldy

Post subject: Re: COUPLE O HOURS SPARE

PostPosted: 23 Sep 2012 21:30

Offline

Joined: 09 May 2009 21:23
Posts: 99

willy thats a nice job but havnt you got any decorating to do . :clap:
