Goodafternoon!

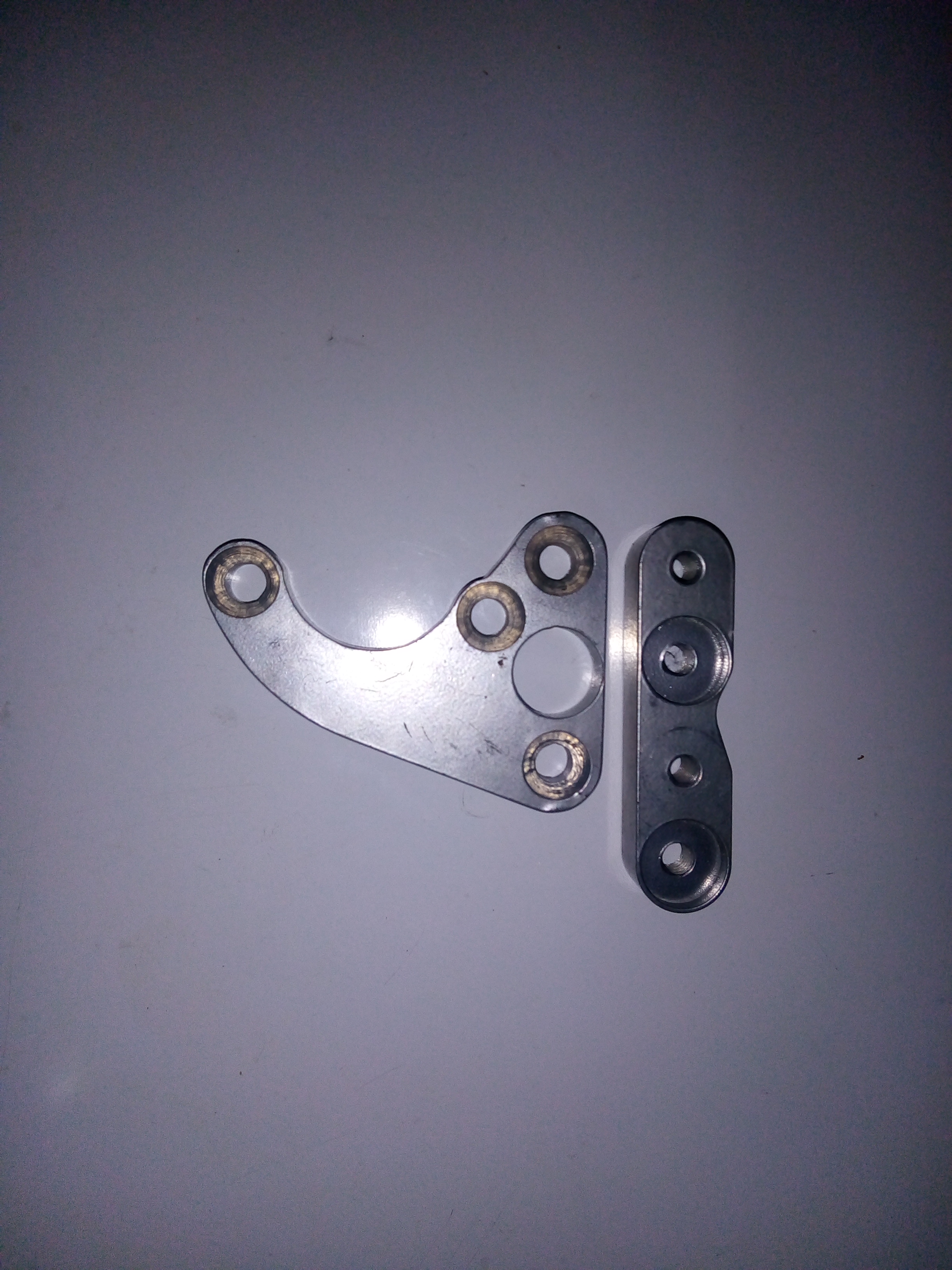

I bought this bracket for my XB a few weeks ago but can't find which caliper should be mounted on it.

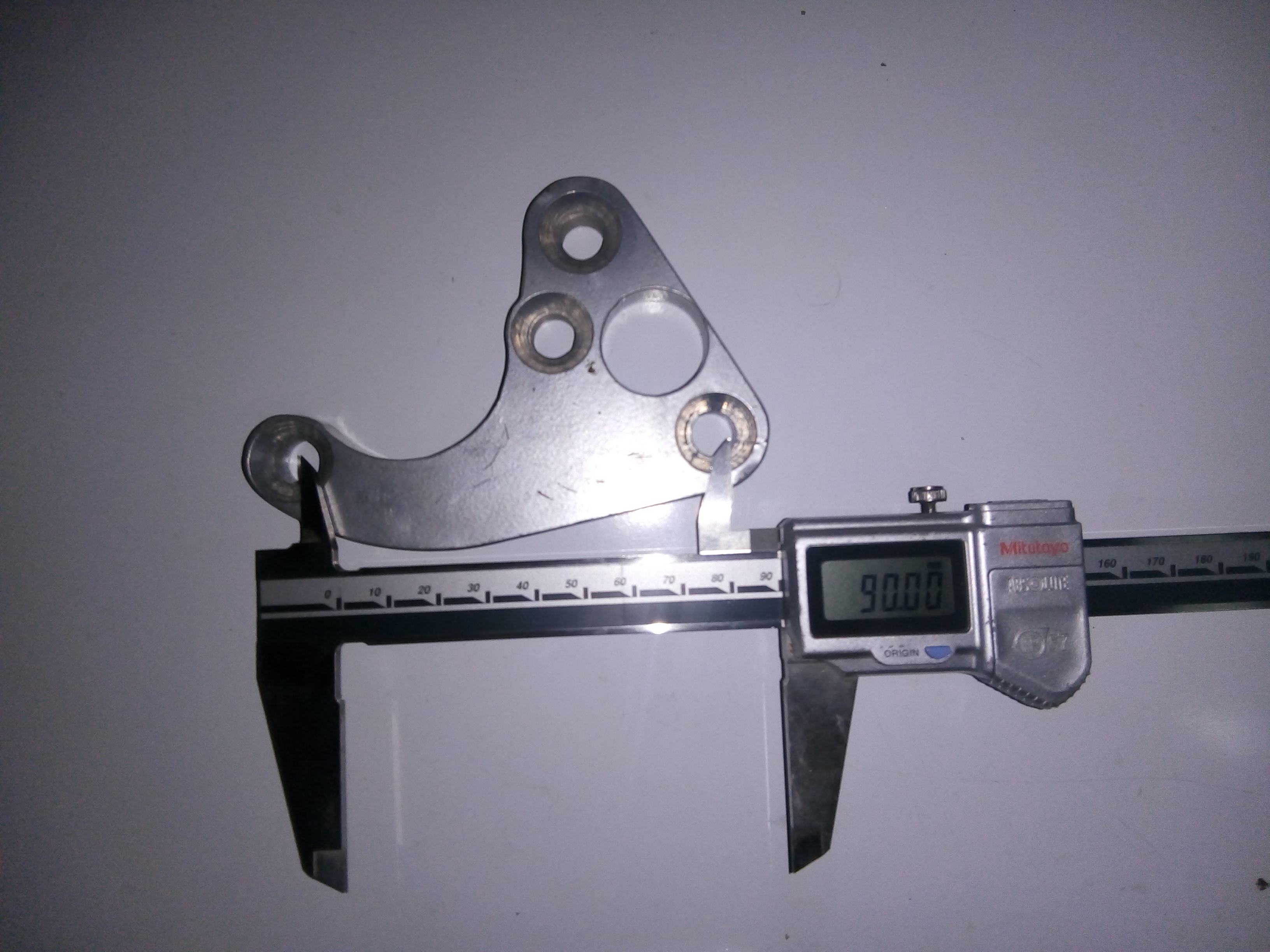

The mounting holes for the caliper are 90 mm apart. There is no mark on it, but it doesn't look 'home made'.

There are several Brembo's with mounting holes 90 mm apart, but I can't find anything about the distance between the mounting holes and brake disc (sidewards distance) on the advertisements for the calipers.

Anyone who recognizes this bracket and knows which caliper goes with it?

Thanks!


Attachments:
IMG_20190111_152451.jpg [ 1.74 MiB | Viewed 1299 times ]
IMG_20190111_152401.jpg [ 2.03 MiB | Viewed 1299 times ]
Top
PostPosted: 20 Jan 2019 16:34
Offline
proff. patpending
User avatar

Joined: 06 May 2009 20:20
Posts: 14705
Current ride: Victoria Sponge
Location: Bristol - Gateway to all things good
Think you are measuring between the wrong holes. I reckon that’s a Freespirits which takes a P32B.

Not as cool as mine (if I may say so myself)...

_________________
08 Specialized Langster


Top
PostPosted: 20 Jan 2019 16:53
Offline

Joined: 30 Nov 2018 13:12
Posts: 14
Current ride: Buell XB12S
Location: Netherlands
You're right Pash! Have to measure again.
Thanks for the tip, I'll measure again and compare it with the P32B.

Yours does look much better indeed, but it is hidden, right ;)


Top
PostPosted: 20 Jan 2019 17:04
Offline
proff. patpending
User avatar

Joined: 06 May 2009 20:20
Posts: 14705
Current ride: Victoria Sponge
Location: Bristol - Gateway to all things good
Schematic is here...

_________________
08 Specialized Langster


Top
PostPosted: 21 Jan 2019 09:06
Offline

Joined: 30 Nov 2018 13:12
Posts: 14
Current ride: Buell XB12S
Location: Netherlands
Thanks! Where can I find those drawings? I need these schematics of some other Brembo calipers too.


Top
PostPosted: 21 Jan 2019 10:30
Offline
proff. patpending
User avatar

Joined: 06 May 2009 20:20
Posts: 14705
Current ride: Victoria Sponge
Location: Bristol - Gateway to all things good
RISL wrote:
Thanks! Where can I find those drawings? I need these schematics of some other Brembo calipers too.

Which ones do you need?

_________________
08 Specialized Langster


Top
PostPosted: 21 Jan 2019 18:02
Offline
proff. patpending
User avatar

Joined: 06 May 2009 20:20
Posts: 14705
Current ride: Victoria Sponge
Location: Bristol - Gateway to all things good
One point of note is that there is a Grimeca caliper that uses the same mounting points as the P32B:

https://www.ebay.co.uk/itm/Grimeca-2-pi ... 0448341023

Not sure of the model number for when this auction ends, however the sealing is far better than the 32B. You might want to check it can accommodate the disc in terms of thickness though.

_________________
08 Specialized Langster


Top
PostPosted: 21 Jan 2019 18:53
Offline

Joined: 30 Nov 2018 13:12
Posts: 14
Current ride: Buell XB12S
Location: Netherlands
pash wrote:
RISL wrote:
Thanks! Where can I find those drawings? I need these schematics of some other Brembo calipers too.

Which ones do you need?

P32, P32F, P32G and P34, do you have them? Can I find it somewhere on the internet?

Thanks for the link, but I can't find which Grimeca they are selling, and they don't replay to questions. It is pretty cheap though, so maybe worth a try.

In the Netherlands there are almost no calipers for sale. Maybe I found a P32B from an Aprilia Tuono, but also no confirmatie het.


Top
PostPosted: 21 Jan 2019 19:10
Offline
proff. patpending
User avatar

Joined: 06 May 2009 20:20
Posts: 14705
Current ride: Victoria Sponge
Location: Bristol - Gateway to all things good
I'll sell you a P32B if you get stuck...

P34s follow the same rules as the P32 series... Schematics the same...

P32F

P32G

Anything else, let me know... ;)

_________________
08 Specialized Langster


Top
PostPosted: 21 Jan 2019 19:15
Offline

Joined: 30 Nov 2018 13:12
Posts: 14
Current ride: Buell XB12S
Location: Netherlands
Thank you very much, Pash! :worthy:
I'll let you know if I need one!
