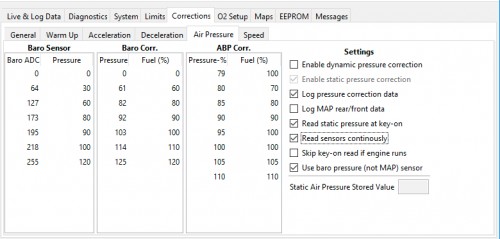

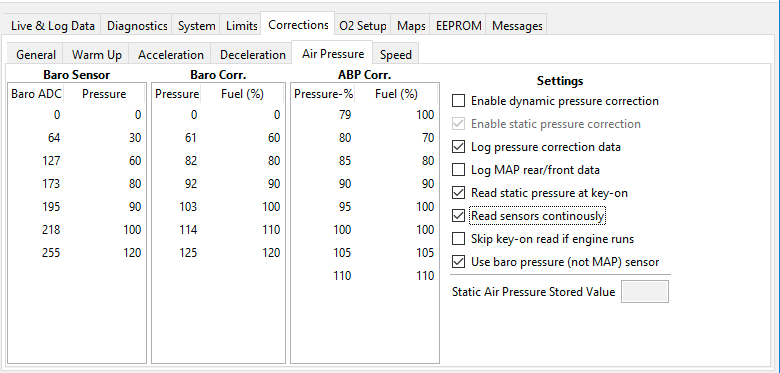

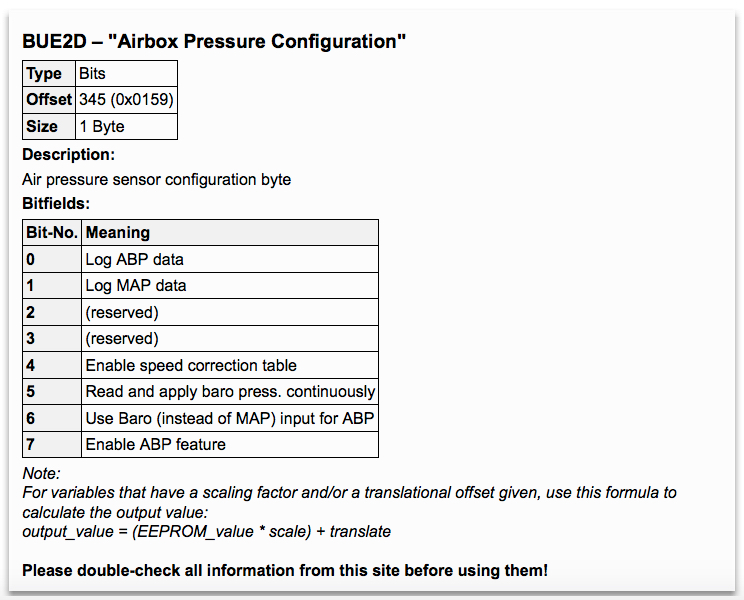

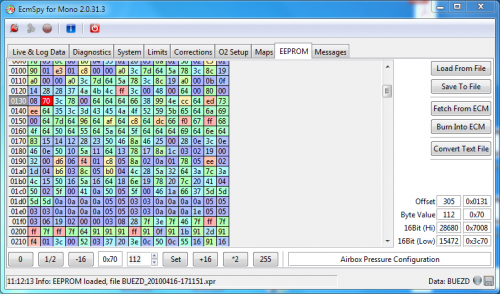

This is the setup I applied to a BUEGB using a Buell OEM air pressure sensor attached to the air box. Value of he airbox pressure configuration byte is 0xC5 (= 11000101 binary).
Thanks Gunter, was the pressure sensor attached to the inside or the outside of the airbox? Also did you use just one sensor (i.e. no MAP sensor). My sensor is a Bosch 0 261 230 061 (same as one used in 1125R) I've mounted it under the seat where the bank angle sensor originally was before Buell moved it to the tail. As I said it does seem to be reading correctly with the default figures in the Baro
Sensor table. My plan is to set the baro
sensor to adjust the fueling continuously, as I do like to ride mountain passes (Alps and Pyrenees) and I've had a few bikes (even fuel injected ones) that haven't coped well at altitude. This seemed to be an easy solution to help the XB12 cope a bit better.
