I've just tried to fit a FS pulley wheel cover and FS pulley cover to my 2003 XB9, the problem is the spacers on the pulley cover dont appear to be long enough so as I tighten them the cover is hitting the pulley wheel cover?
The face of the pulley wheel cover stands out about 12mm from the existing wheel face (ugly rusty looking thing) is this right?
Any ideas???

Interestingly in this section there is a guide to fitting...

viewtopic.php?f=17&t=10

_________________
08 Specialized Langster

Ok apologies first for referring to the front sprocket as the pulley wheel.

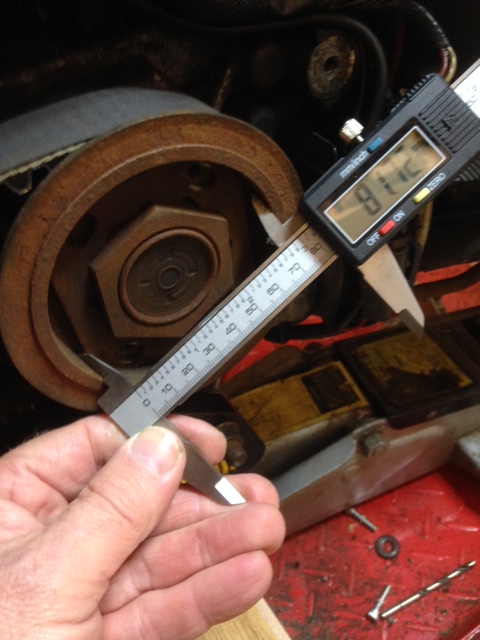

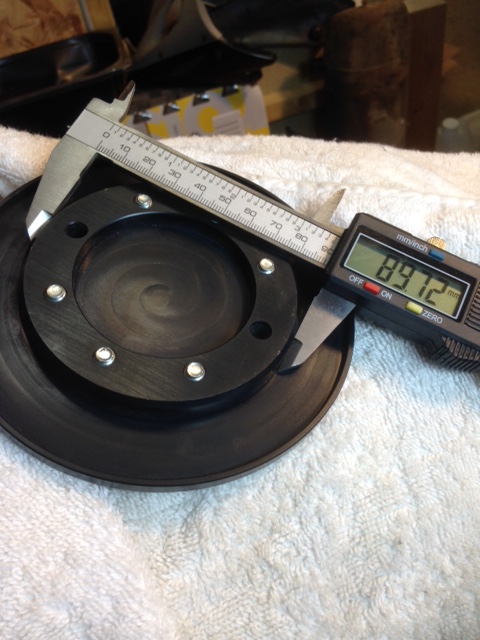

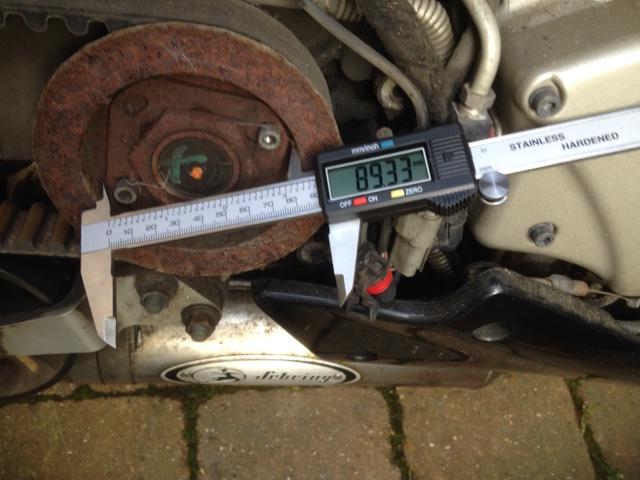

The problem is the FS sprocket cover will fit my 05 XB12 but not my 03 XB9 as the diameters are different (didn’t have a model year option when I purchased it!)
See pics.

Indeed, as you found out not all XBs have the same belt/pulleys.

_________________
Try doing this to yer fueller...........

time to find a lathe yufffff

_________________
IF IT BLEEDS WE CAN KILL IT ,THIS STUFF WILL MAKE YOU A GODDAM SEXUAL TYRANASURUS ,YOUVE BEEN PUSHING TOO MANY PENCILS DILLON .GET TO THE CHOPPER

YEP!

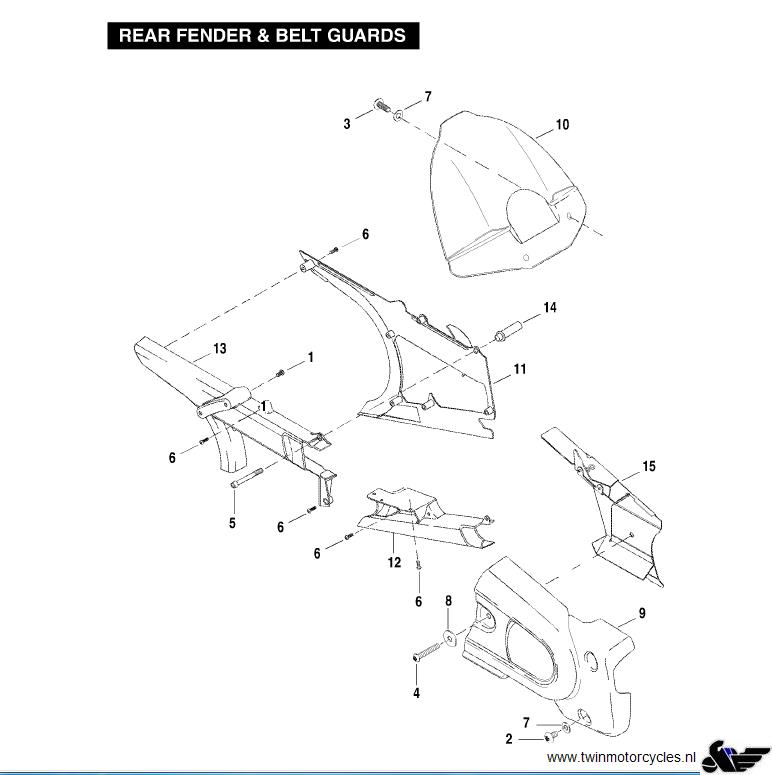

Ok second question: I'm going to remove the belt gaurds and leave the belt exposed, but do I still need to keep the inner stone guard (part 15 on diagram) on?

The 02/03 xb's have a completely different sprocket and belt set.
(there is not very much to get for them these days)

And yes if you want to have all covers off ,it's possible because it's your bike!
