Hi All,

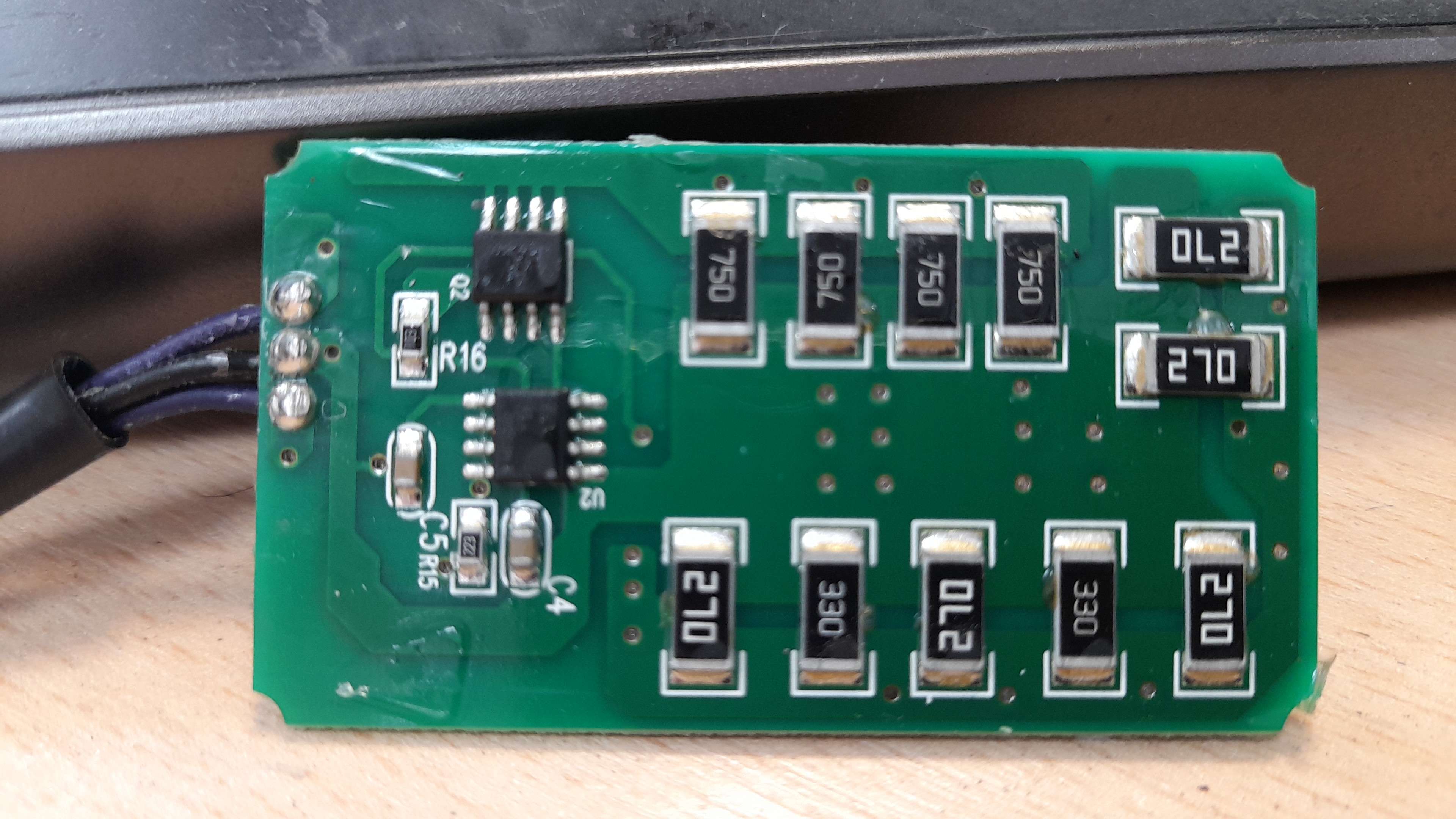

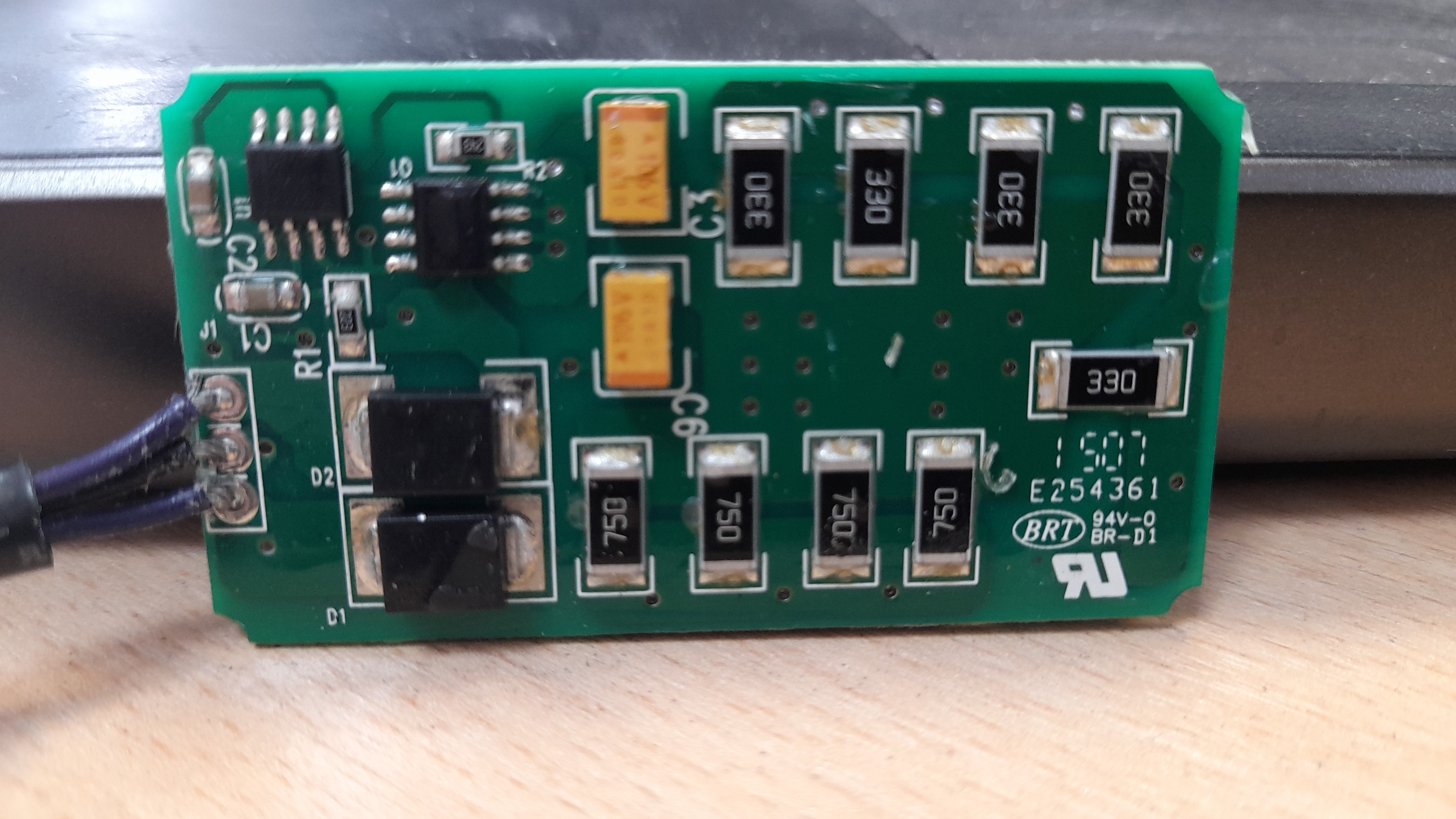

Found this circuit Board under my 2007 XB12S seat. 3 wires, it connects to both rear indicators + lines and loom GND. It has no outputs or anything else. Thought it may have been a bleeper or something until I cut the heatshrink off it! Lot of work, double sided PCB with ICs!

Any idea what it is? Its defo aftermarket by the way it was spliced in!

Andy


Attachments:
Buell PCB 2.jpeg
Buell PCB 2.jpeg [ 1.28 MiB | Viewed 18481 times ]
Buell PCB 1.jpeg
Buell PCB 1.jpeg [ 1.34 MiB | Viewed 18481 times ]
Top
  Send private message
Reply with quote
Andysdad
PostPosted: 04 Aug 2023 22:07
Offline

Joined: 10 May 2019 23:31
Posts: 99
Current ride: XB12XT
Hazard warning lights?
Top
  Send private message
Reply with quote
Dusty
PostPosted: 05 Aug 2023 23:54
Offline
User avatar

Joined: 06 May 2009 15:35
Posts: 2485
Current ride: A black one
Location: Wales. The land of dragons and welsh cakes
ULEZ compliance tracker.

_________________
Dusty 001
Top
  Send private message
Reply with quote
TheAlchemist
PostPosted: 06 Aug 2023 00:07
Offline
User avatar

Joined: 13 Mar 2014 21:54
Posts: 36
Current ride: 1125CR TL1000S XB12S
Location: United Kingdom
Thanks guys for your input!!!!!

Just found out its a load equalizer, must be needed for the LED indicators so ill wire it back in a bit better than it was.

Andy
Top
  Send private message
Reply with quote
Andysdad
PostPosted: 06 Aug 2023 20:20
Offline

Joined: 10 May 2019 23:31
Posts: 99
Current ride: XB12XT
Or replace flasher relay with one like in this thread.
