PostPosted: Wed May 05, 2010 6:30 am
Offline
proff. patpending
User avatar

Joined: Wed May 06, 2009 8:20 pm
Posts: 14228
Current ride: Victoria Sponge
Location: Bristol - Gateway to all things good
Set the Starter Interlock Configuration do disable the function.

If you want to disconnect the switch and not have the CEL on, disable the error checking in Error Mask Byte 4.

What does this mean I hear you say...

Well, I have put the bits that you need to set in bold. You need to locate these bits, using ECMSpy, or something similar, then change them...

Since these DDFI3 ECMs are shared between XBs and 1125s, and XBs have error checking for Adaptive Muffler Control (AMC), I can't tell you what value you need to set your byte to, however, with the use of simple arithmetic, you can work it out.

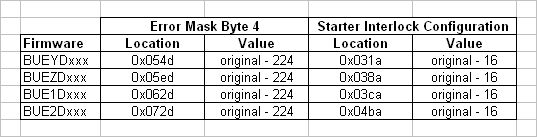

In the byte location table, you will find the location of the byte and the adjustment you have to make to the value...


You do not have the required permissions to view the files attached to this post.

_________________
08 Specialized Langster


Top


PostPosted: Wed May 05, 2010 6:50 am
Offline
User avatar

Joined: Wed May 06, 2009 6:18 pm
Posts: 1596
Current ride: CB1300 & Z750R
Location: Esslingen/Neckar, Germany
"Starter Interlock Configuration"

Type Bits
Size 1 Byte

Description:

Starter Interlock Configuration

Bitfields:
Bit-No. Meaning
0 Reverse sidestand signal polarity (high level with sidestand in)
1 Reverse clutch signal polarity (high level with clutch engaged)
2 Reverse neutral signale polarity (high level with transmission in neutral)
3 Enable starter with shift light output
4 Log SI input instead of AF1
5 Sidestand interlock enabled
6 Starter interlock enabled
7 Sidestand feature enabled (= 128 dec, 0x80 hex)

_________________
"It is often said that before you die your life passes before your eyes. It is in fact true. It's called living."
Terry Pratchett


Top


PostPosted: Sat May 08, 2010 12:00 am
Offline

Joined: Wed Oct 21, 2009 9:24 pm
Posts: 32
Location: scotland
is that calculas :geek:
